Product Description:
|
|
■Tinned ,annealed,stranded or solid copper conductor.MPPE-PE insulation
|
|
■Tinned copper wire spiral shield
|
|
■TPE jacketed single core
|
|
■Use of spiral shield allows for fast and simple temination
|
|
■Rated temperature:80℃.Rated voltage:600V
|
|
■Passes UL VW-1&CUL FT1 vertical flamt test
|
|
说明：
|
|
■弹簧螺旋线导体使用单股或绞线裸铜或镀锡铜MPPE-PE 绝缘
|
|
■镀锡铜线缠绕
|
|
■单芯MPPE-PE被覆
|
|
■编织隔离
|
|
■ 弹簧螺旋线 额定温度：80℃额定电压：600V
|
|
■可通过UL VW-1 及 CUL FT1 ，垂直燃烧测试
|
|
Applications:
|
|
■Internal wiring.
|
|
应用：
|
|
■内部布线。
|
|
UL Style& CUL Type
|
Conductor
导体
|
Insulation
Thickness
绝缘厚度
|
No.of core
芯线数量
|
shield
COVERAGE
屏蔽
覆盖率
|
Jacket Thickness
被覆厚度
|
Overall
Diameter
完成外径
|
Conductor
Resistance at 20℃导体电阻
|
|
线号
|
线数/线径
|
|
AWG
|
No/mm
|
mm
|
%
|
mm
|
mm
|
Ω/KM
|
UL10986
CUL（Stranded)绞线
|
30
|
7/0.10
|
0.38
|
1
|
>=65
|
0.38
|
2.60
|
381.00
|
|
28
|
7/0.127
|
0.38
|
1
|
>=65
|
0.38
|
2.70
|
239.00
|
|
26
|
7/0.16
|
0.38
|
1
|
>=65
|
0.38
|
2.80
|
150.00
|
|
24
|
11/0.16
|
0.38
|
1
|
>=65
|
0.38
|
3.00
|
94.20
|
|
22
|
17/0.16
|
0.38
|
1
|
>=65
|
0.38
|
3.20
|
59.40
|
|
20
|
21/0.178
|
0.38
|
1
|
>=65
|
0.38
|
3.70
|
36.70
|
|
18
|
34/0.178
|
0.38
|
1
|
>=65
|
0.38
|
4.40
|
23.20
|
|
16
|
26/0.25
|
0.38
|
1
|
>=65
|
0.38
|
4.60
|
14.60
|
|
弹簧螺旋线 以上数据仅供参考，不作为正式的设计依据，产品规格以双方确认的规格书承认为准！最终解释权归稳畅电子制品有限公司所有
|

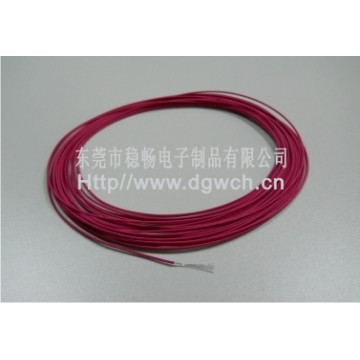

点击图片查看原图
