Product Description:
|
|
■Tinned ,annealed,stranded or solid copper conductor.
|
|
■PVC/SR-PVC/PP/TPU/XL-PE insulation.
|
|
■TPU jacketed.
|
|
■Rated temperature:60℃.Rated voltage:30volts
|
|
■Uniform thickness of wire to ensure easy stripping and cutting.
|
|
■Passes UL VW-1&CUL FT1/FT2 vertical flamt test
|
|
■Tinned or bare copper winding or woven isolation.
|
|
■A collection of cores can be isolated tissue-paper package.aluminum foil or mylar.
|
|
■Executive Standard:UL758 UL1581 CSA22.2.
|
|
说明：
|
|
■导体使用单股或绞线裸铜或镀锡铜
|
|
■PVC/SR-PVC/PP/TPU/XL-PE绝缘。
|
|
■TPU外覆。
|
|
■额定温度：60℃额定电压：30Volts
|
|
■使用标准厚度，易剥，截断容易。
|
|
■可通过ULVW-1及CUL FT1/FT2，垂直燃烧测试。
|
|
■镀锡或裸铜或编织隔离。
|
|
■芯线集合可包铝箔麦拉或棉纸隔离。
|
|
■执行标准:UL758 UL1581 CSA22.2.
|
|
Applications:
|
|
■For internal wiring of computer,audio&video equipment.
|
|
应用：
|
|
■用于电脑及视听设备内部连线.
|
UL Style
&CSA Type
|
Conductor Cores
导体芯数
|
Conductor
导体
|
Insulation
Thickness
绝缘厚度
|
Nom.Dia
绝缘线径
|
Jacket Thickness
被覆厚度
|
Overall
Diameter
完成外径
|
Conductor
Resistance at 20℃导体电阻
|
|
线号
|
线数/线径
|
|
AWG
|
No/mm
|
mm
|
mm
|
mm
|
mm
|
Ω/KM
|
UL20197
（Stranded)
绞线
|
2C
|
30
|
7/0.10
|
0.25
|
0.80
|
0.8
|
3.40
|
381.00
|
|
28
|
7/0.127
|
0.90
|
3.60
|
239.00
|
|
26
|
7/0.16
|
1.00
|
3.90
|
150.00
|
|
24
|
11/0.16
|
1.10
|
4.10
|
94.20
|
|
22
|
17/0.16
|
1.30
|
4.60
|
59.40
|
|
20
|
21/0.178
|
1.50
|
5.00
|
36.70
|
|
18
|
34/0.178
|
1.80
|
5.60
|
23.20
|
|
3C
|
30
|
7/0.10
|
0.25
|
0.80
|
0.8
|
3.70
|
381.00
|
|
28
|
7/0.127
|
0.90
|
4.00
|
239.00
|
|
26
|
7/0.16
|
1.00
|
4.20
|
150.00
|
|
24
|
11/0.16
|
1.10
|
4.50
|
94.20
|
|
22
|
17/0.16
|
1.30
|
4.80
|
59.40
|
|
20
|
21/0.178
|
1.50
|
5.30
|
36.70
|
|
18
|
34/0.178
|
1.80
|
6.00
|
23.20
|
|
4C
|
30
|
7/0.10
|
0.25
|
0.80
|
0.8
|
4.30
|
381.00
|
|
28
|
7/0.127
|
0.90
|
4.60
|
239.00
|
|
26
|
7/0.16
|
1.00
|
4.80
|
150.00
|
|
24
|
11/0.16
|
1.10
|
5.10
|
94.20
|
|
22
|
17/0.16
|
1.30
|
5.50
|
59.40
|
|
20
|
21/0.178
|
1.50
|
6.10
|
36.70
|
|
18
|
34/0.178
|
1.80
|
6.80
|
23.20
|
|
5C
|
30
|
7/0.10
|
0.25
|
0.80
|
0.8
|
4.50
|
381.00
|
|
28
|
7/0.127
|
0.90
|
4.90
|
239.00
|
|
26
|
7/0.16
|
1.00
|
5.20
|
150.00
|
|
24
|
11/0.16
|
1.10
|
5.40
|
94.20
|
|
22
|
17/0.16
|
1.30
|
6.00
|
59.40
|
|
20
|
21/0.178
|
1.50
|
6.70
|
36.70
|
|
18
|
34/0.178
|
1.80
|
7.40
|
23.20
|
|
6C
|
30
|
7/0.10
|
0.25
|
0.80
|
0.8
|
4.90
|
381.00
|
|
28
|
7/0.127
|
0.90
|
5.30
|
239.00
|
|
26
|
7/0.16
|
1.00
|
5.60
|
150.00
|
|
24
|
11/0.16
|
1.10
|
6.00
|
94.20
|
|
22
|
17/0.16
|
1.30
|
6.40
|
59.40
|
|
20
|
21/0.178
|
1.50
|
7.00
|
36.70
|
|
18
|
34/0.178
|
1.80
|
7.90
|
23.20
|
|
以上数据仅供参考，不作为正式的设计依据，产品规格以双方确认的规格书承认为准！最终解释权归稳畅电子制品有限公司所有
|

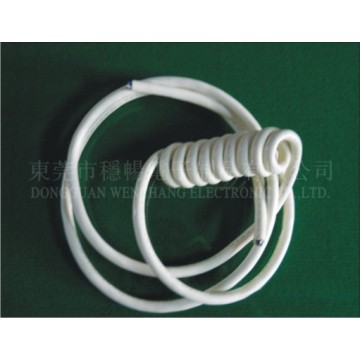

点击图片查看原图
